JLR DOIP VCI3

The new JLR approved DOIP VCI 2005-2022 is the only unit that will be compatible with Pathfinder and all JLR vehicles with the new vehicle architectures (from the Range Rover/Range Rover Sport (L405/L494) 17MY onwards) or allow the enhanced diagnostics that Pathfinder will offer the retailer. In addition to the 17MY vehicle line applications, the DOIP VCI will be capable of interfacing with 14-16MY Multi-CAN architecture vehicle lines on the Pathfinder diagnostic system. 14-16MY vehicle lines with DOIP VCI support: XE (X760) F-Pace (X761) F-Type (X152) XF (X260) XJ (X351) – 16MY only Evoque (L538) Discovery Sport (L550) Range Rover (L405) Range Rover Sport (L494)

Jaguar Land Rover DoIP VCI Supported Functions: Work with the models after 2017, support Pathfinder software application Work with the models before 2016, support SDD software. Support all of the SDD’s diagnostic & programming protocol. Support all of the Pathfinder’s diagnostic & programming protocol Support Pathfinder activation service offline. Support WIFI connection Support VBF file edit Support E-XML file edit Support SDD engineering software application Support Pathfinder engineering software application Support online programming, coding & key programming SDD software can update to the newest version with the assistance of the manufactures’ engineers, and perform online programming. Pathfinder can update to the newest version with the assistance of the manufactures’ engineers, and perform online programming. Can replace JLR VCI box Can replace JLR DoIP VCI box The NEW JLR DoIP VCI is the newest interface for Jaguar and Land Rover vehicles. The Pathfinder software It is the only unit that will be compatible with the Pathfinder Software and all JLR vehicles with the new vehicle architectures found in 2017 and newer vehicles (from the Range Rover/Range Rover Sport L405/L494). In addition to the 2017 and newer vehicles, the DoIP VCI will also be capable of interfacing with 2014 through 2019 Multi-CAN architecture vehicles (see application list below).

• Jaguar Land Rover Approved device
• Replacement for JLR SDD VCI’s
• Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks
• Suitable for Legacy, Current and Future Vehicles

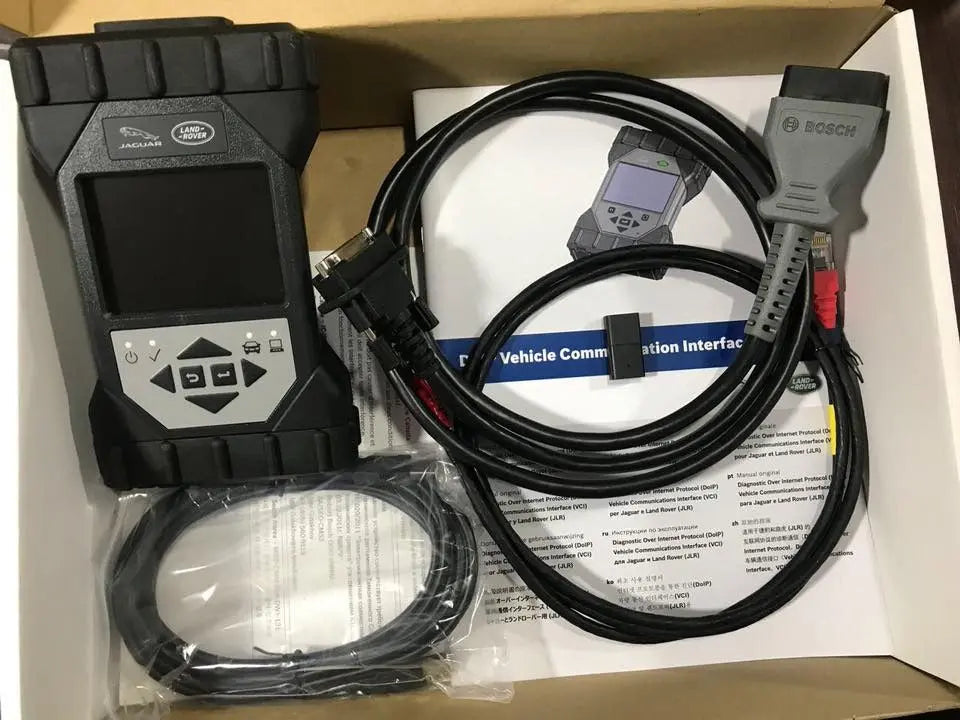

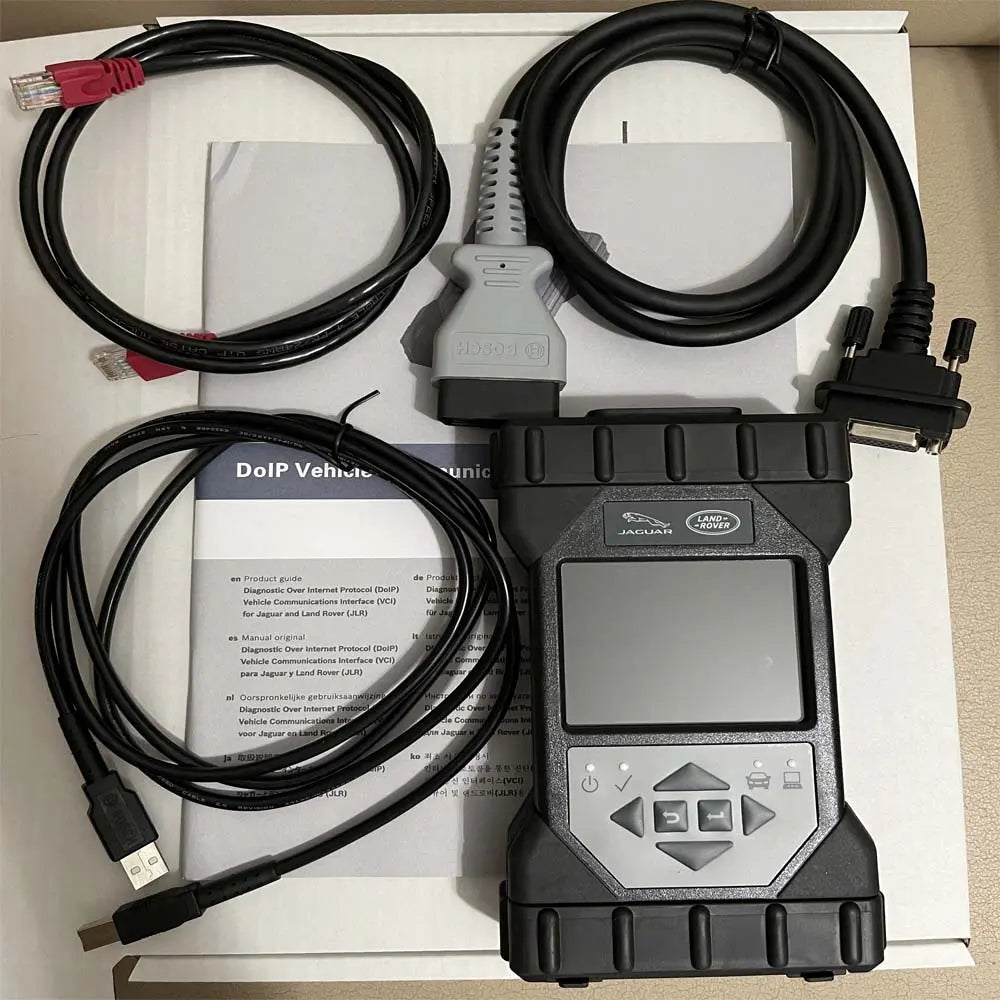

• 2m USB Cable as standard included
• Easy to update for J2534 new functionality updates

What does the JLR VCI do?

The JLR VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

 How does the JLR VCI operate in J2534 Mode?

The JLR VCI is simple and easy to use.  Drivers are available to install with JLR SDD DVD 142.  Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).  Connect the 2m USB cable to the JLR VCI and the other end to the SDD Laptop.  The (PWR) LED will turn solid red to show the JLR VCI is powered.  During communication with the vehicle the Status (STS) LED will flash green.

How does the JLR VCI get updated for future Software Updates?

Periodically JLR will release updates to its products’ drivers and software. These updates are necessary to either release further device functionality or to resolve field issues.

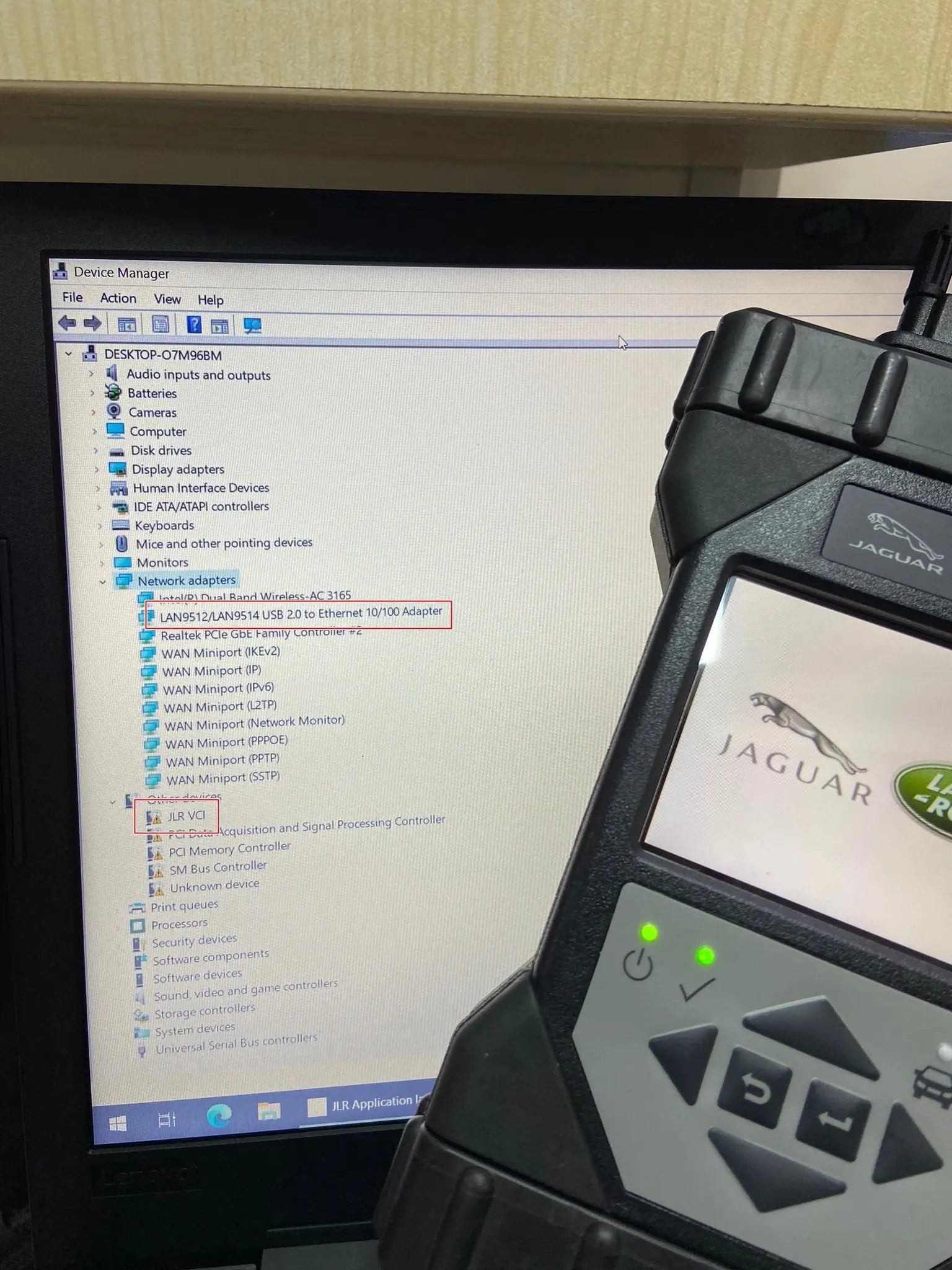

The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request.

If problems are experienced during device use, always make sure that the latest device software and drivers have been installed.

Vehicle Coverage:

The JLR VCI is suitable for use with all JLR vehicle models
