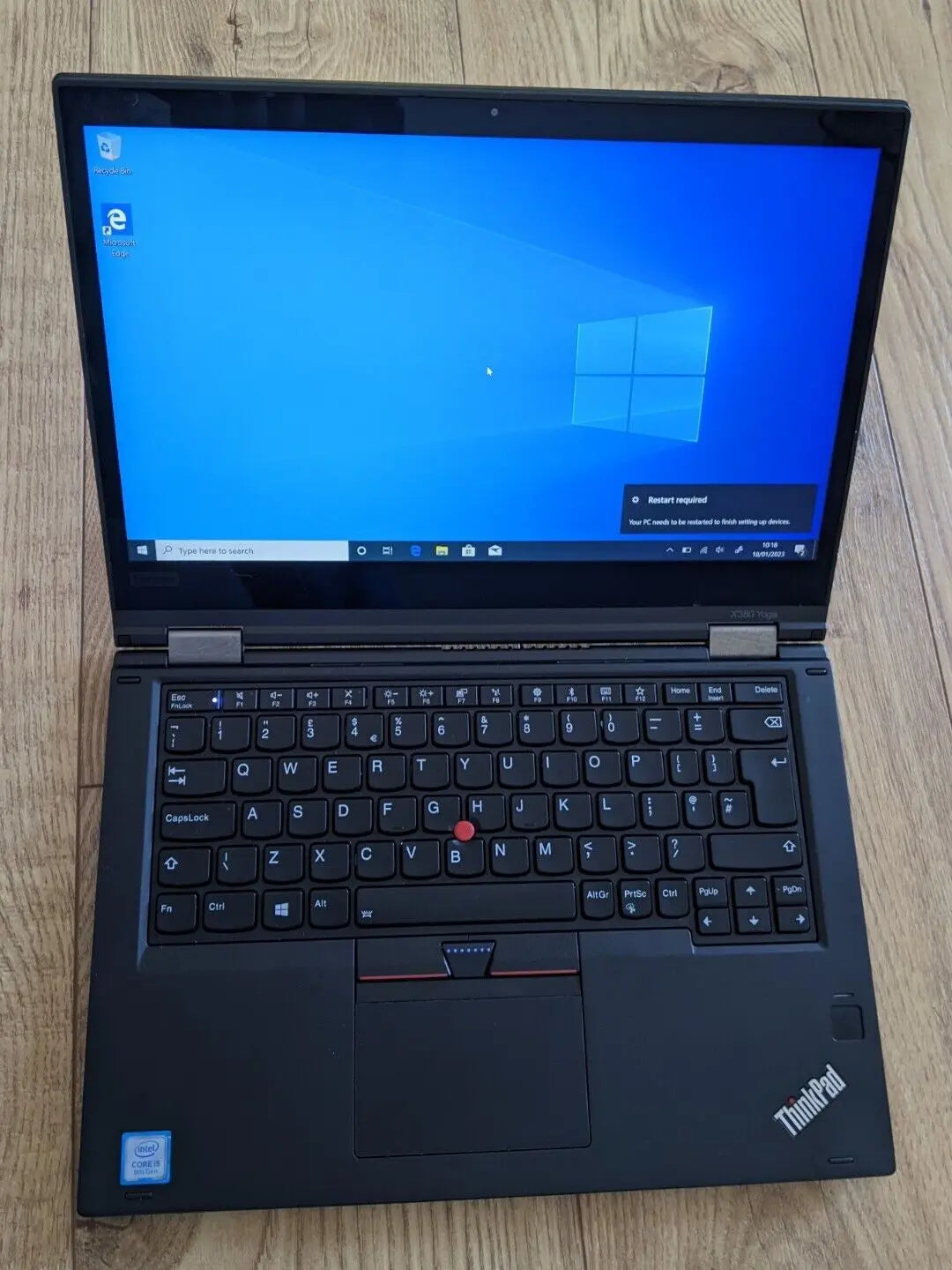

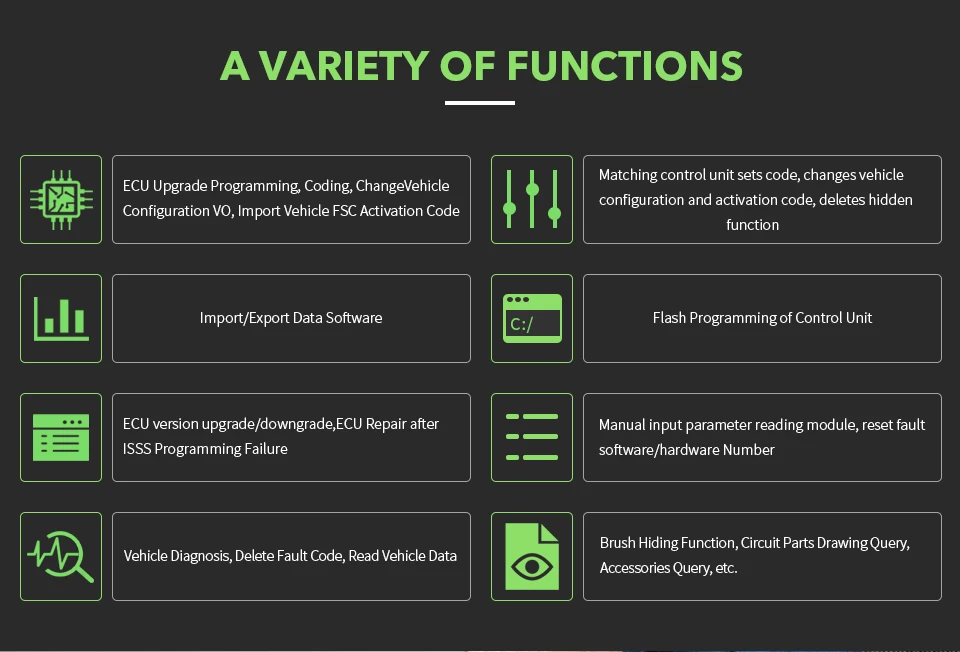

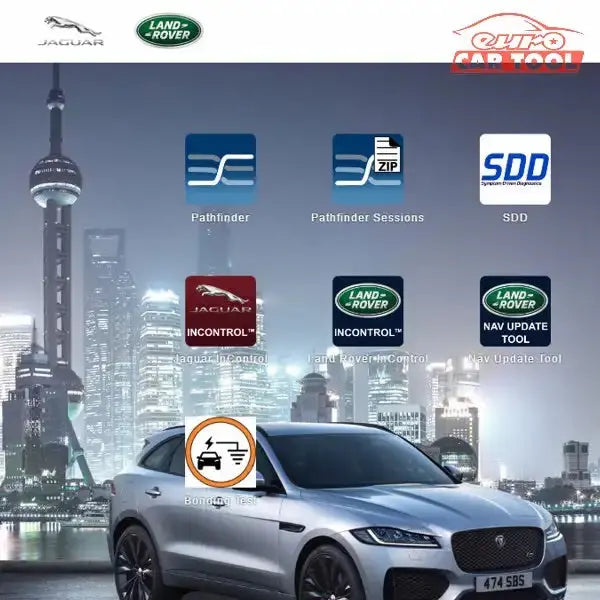

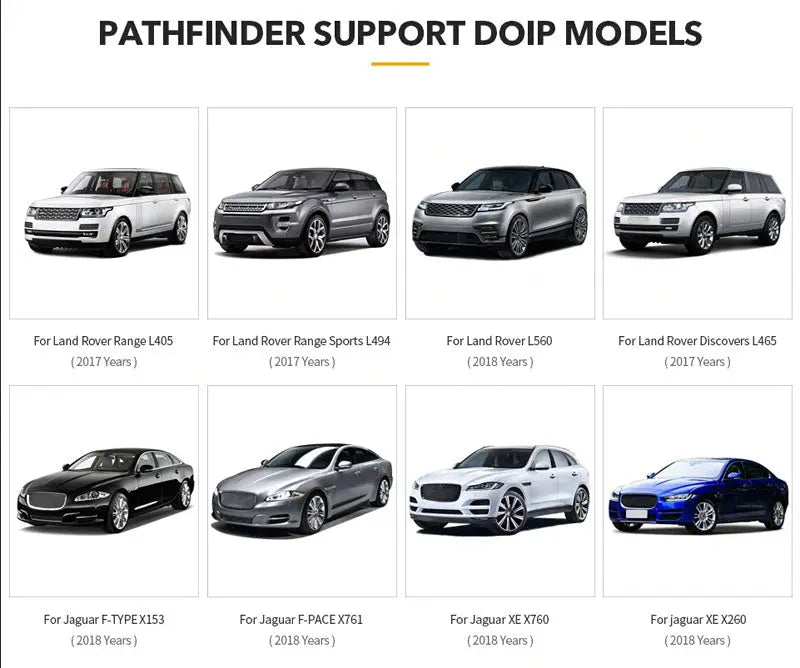

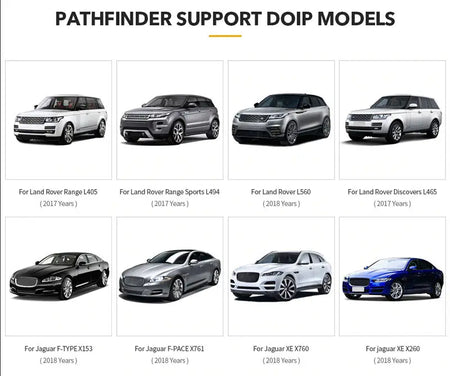

PATHFINDER SOFTWARE + LENOVO LAPTOP

SDD JLR SOFTWARE

• JLR as a supported interface and will offer it directly to Jaguar and Land Rover dealerships as the factory diagnostics tool.
• Mongoose Pro JLR is a low cost VCI for factory diagnostics and reprogramming.

• Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
• Support for X100, X150, X202, X250, X350, X351, X400 Jguar vehicle lines.
• Diagnostics Trouble Codes
• Data Lists
• Active Tests
• Monitor
• Utility tests
• Reprogramming

Key Features

• • USB support for HSCAN, MSCAN, J1850PWM, ROSCO, and ISO9141/KWP2000 vehicles
  • Simple packaging with electronics contained inside the cable.
• Unique Advantages
  • Jaguar and Land Rover approved low cost interface
• Bus Protocols
  • CAN Bus (capable of ISO 15765, GMLAN, and ISO14229)
  • Medium Speed CAN
  • J1850PWM / SCP
  • ISO9141 / KWP2000
  • ROSCO
• Operating System Compatibility
  • Windows 10 11  are recommended for compatibility with OEM application.
• Other
  • J2534 and J2534-1 compliant device driver
  • Commercial Range (0 to +70 C)
  • Dimensions: 3" x 1.75"
  • Operating Voltage: Bus-powered by USB
  • Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device Driver

IDS (INTEGRATED DIAGNOSTIC SOFTWARE)

IDS was used by Jaguar dealerships for vehicles manufactured pre-2005. Land Rover also used IDS.

It allows you to do the following:Fault Code Reading / Resetting analysing for repairs

• Service Lights
• Read / Clear / Reset Air bag Light codes
• Read / Clear / Reset ABS Light codes
• Programming Modules
• Programming personalisation like ride height or folding wing mirrors.
• Activate pumps for brake bleeding
• Program new DSC units
• Program ABS Units

SDD (SYMPTOM DRIVEN DIAGNOSTICS)

SDD is the latest development by JLR in vehicle diagnostics. Designed to be easy to use and extremely efficient in fault finding. Conventional diagnostic systems read fault codes and offer them to the end user. It is then upto the the end user to analyse the codes and find the vehicle fault from the data that has been provided.

SDD instead asks the end user the fault with the vehicle and progresses to analyse the fault codes and offers the solution to fix the vehicle on a relevance to likely ratio.

Should you wish to intervene and only see the fault codes then this option is open to the end user but keep in mind, SDD was developed to recommend the repairs.

Alongside diagnostics the service functions allows vehicle and module programming and vehicle customisation.

A selection of what can be done with SDD:

• Fault Code Reading / Resetting analysing for repairs
• Service Lights
• Read / Clear / Reset Air bag Light codes
• Read / Clear / Reset ABS Light codes
• Programming Modules
• Clearing adaptions
• V130 Programming extra keys
• Programming personalisation like ride height or folding wing mirrors.
• DPF Regeneration
• Activate pumps for brake bleeding
• Adjust vehicle heights
• Program new DSC units

MAKING SDD EFFECTIVE WHEN SELECTING VEHICLE SYMPTOMS FOR YOUR JAGUAR & LAND ROVER

While it is easy to distinguish between a Warning Message and a Warning Lamp that is currently active, if the problem is intermittent, the service writer must determine through careful questioning of the customer if a warning lamp, warning message, or both were displayed. Also, not every MIL is considered a Warning Lamp since some indicators on the instrument cluster are used to indicate the status of a system. Examples of Status Lamps include the Passenger Seat Occupancy Status Lamp and the TPMS Status Lamp. Using the Passenger Seat Occupancy Status Lamp as an example: this light is only used to indicate the status of the passenger seat. When lit, it simply indicates that the SRS system has determined that based on the current inputs, the passenger restraints will not be deployed. It does not mean the system has detected a failure that requires a driver warning. For this reason, the lamp is classified as a Status Lamp. Similarly, the amber TPMS indicator is used to inform the driver that the tire pressure requires attention. While this light may remain lit when a system malfunction exists, it is considered a Status Lamp since its primary function is to inform the driver of the tire pressure status. Recommendation: When selecting SDD symptoms for lamps that are primarily considered a Status Lamp, but are also known to have a secondary function as a Warning Lamp, be sure to select the symptoms under both categories in the symptom selection map.

New Diagnostic Process

IDS has been updated with the goal of providing a clear diagnostic strategy and tool navigation path to the technician. With Symptom Driven Diagnostics (SDD), the technician is able to begin the diagnostic process by identifying the specific symptoms of a customer concern using Symptom Maps incorporated into the

SDD software. A diagnostic strategy can then be structured around only the DTCs that are relevant to those symptoms. SDD can also provide links to other service information to support the diagnostic process.

Symptom Maps are used by SDD in conjunction with DTCs. In order to ensure the best possible recommenda- tions to achieve FRFT repairs,

the technician must input ALL vehicle symptoms that match the customer concern.

The Integrated Diagnostic System (IDS) core architecture dates from 1999 and incorporates elements going back as far as 1995. In the meantime,

vehicle technology has become more complex and the number of vehicle variants has increased.

Current vehicle systems support up to 4,000 different Diagnostic Trouble Codes (DTCs), which increases the complexity of diagnostics.

The technician now needs to diagnose systems, not merely individual components.

Without a clear strategy for a repair process, a technician faced with up to 40 DTCs at the start of an IDS session can easily lose confidence in the diagnostic tool.

Feedback data from dealerships shows inconsistent methods of fault diagnosis with under utilization of the IDS capabilities.

This has resulted in high ‘No Fault Found’ repair rates, difficulty in achieving Fixed Right First Time (FRFT) repairs, and an increase in the time that a customer’s vehicle is off the road.
