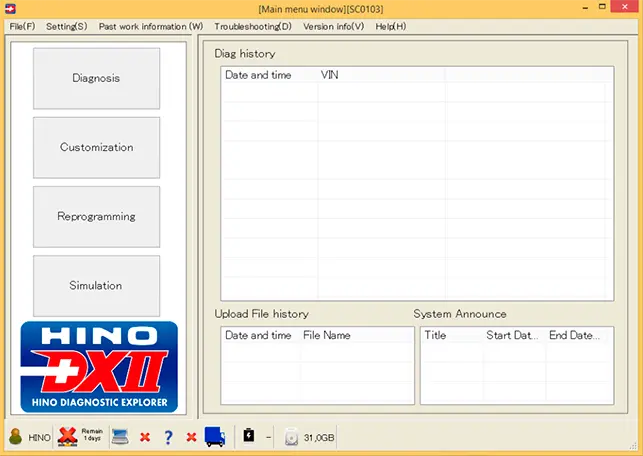

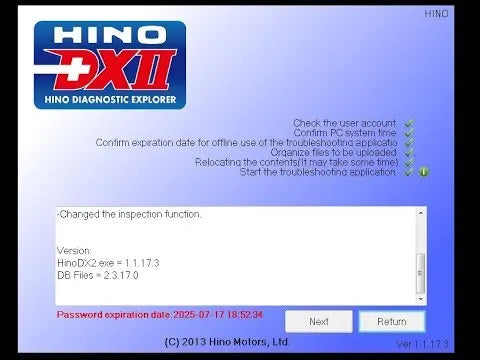

HINO Diagnostic eXplorer DX2 v1.1.22.3 FULL +Troubleshooting Year/Release Date: 03.2023 Version: 1.1.22.3 Type of software: Hino DX2 diagnostic program for trucks Hino Type of vehicle: Truck Hino Diagnostic eXplorer 2 (Hino DX2) designed for diagnosing Hino trucks. The program comes with the database (troubleshooting data). The HinoDX2 is used for troubleshooting of the electronic control system and modification of vehicle-specific data Reprogramming of the ECU program. The main Diagnostics groups are: -Diagnosis -Customization -Reprogramming The covered regions are US markets, Japan, Europe, Russia, and others* Use an interface (I/F) conforming to the SAE J2534 (pass-thru) standard and J2534-1. • DENSO DST-i (recommended) • Other I/F conforming to SAE J2534 and SAE J2534-1 Pay attention to the allowable input voltage. The recommended none-OEM interface adapter is Nexiq USB-Link. Interface Languages: English, Japanese, Chinese, Spanish, Thai, French, Indonesian, Vietnamese Database Languages: Only English escription: Hino DX2 03.2021 diagnostic program for trucks Hino (Diagnosis, Customization, Reprogramming, Simulation) - US markets, Japan, Russia and others - DEF, JPN, USA , CAN, AUS, CHN, ESP, NZL, COL, CHL, HKG, TN, GBR, IRL, SGP, THA. The program runs on any Windows. BENEFITS TO HINO DX I Low speed HINO DX I in contact with large amounts of data, failure to extend the functionality of the software led to the need to develop a new diagnostic system. From 2015 to diagnose HINO vehicles introduced to the work of the next generation system The HINO Diagnostic eXplorer (hereafter referred to as HINO DX) is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into HINO engines.
Main Functions Acquires and deletes trouble data. Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly displays the required data. Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function). Monitors the sensors and actuators equipped on the engine (Data Monitor function) and tests the operation of solenoid valves by forcefully operating them (Active Test function). Simulates diagnostic work with only a PC(Simulation function). Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble cannot be grasped.
Full Customization Capability * Turn on Engine Protection Shutdown System * Set Maximum Vehicle Speed * Set Maximum Cruise Control Speed * Set PTO idle speeds fixed and variable * Change Injector Calibration QR Code when replacing injectors * Supply Pump relearning when replacing SCV or supply pump * Complete DPF testing and regeneration capabillity * Built in Help Menus for troubleshooting specific diagnostics
Diagnostic interface support: Sсanmatik 2, DPA5, Nexiq, Nexiq 2, and so on. according to the protocol RP1210 and J2534
